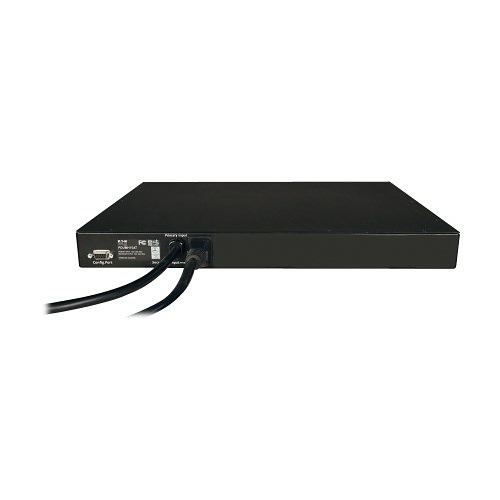

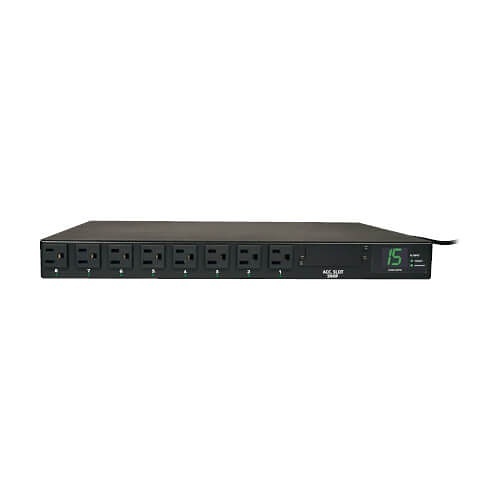

Image of TC-PDUMH15AT
Shop all Eaton Tripp Lite

Eaton Tripp Lite PDUMH15AT 1.4kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V 5-15P 15A Inputs, 8 5-15R Outputs, 1U

PDUMH15AT|TC-PDUMH15AT
Shop all Eaton Tripp Lite

Eaton Tripp Lite PDUMH15AT 1.4kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V 5-15P 15A Inputs, 8 5-15R Outputs, 1U

PDUMH15AT|TC-PDUMH15AT

Sign In for Dealer Pricing

Become an ADI Customer
Eaton Tripp Lite

Eaton Tripp Lite PDUMH15AT 1.4kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V 5-15P 15A Inputs, 8 5-15R Outputs, 1U

PDUMH15AT | TC-PDUMH15AT

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

This 120V 12A Local Metered Automatic Transfer Switch / ATS PDU provides a redundant power option for network devices with a non-redundant power supply configuration. Dual input cords support connections to separate primary and secondary power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input power cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full-time sine wave UPS with zero transfer time. The SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.

Main Features

  • 1.4kW Single-Phase Local Metered ATS PDU
  • 120V 15A Automatic Transfer Switch
  • Redundant A/B Power option for non-redundant equipment
  • Digital display for Power consumption in amps
  • 1U Horizontal rack-mount form factor
  • 8 NEMA 5-15R Outlets
  • 12' NEMA 5-15P Input cables for separate Power sources
  • Super-fast 2-7 ms switchover between Power sources
  • Supports SNMPWEBCARD or WEBCARDLX for upgrade
  • On-Board Processor Evaluates Power Quality

    • General Information

    Name:Eaton Tripp Lite PDUMH15AT 1.4kW Single-Phase Local Metered Automatic Transfer Switch PDU, 2 120V 5-15P 15A Inputs, 8 5-15R Outputs, 1U
    Category:Eaton Tripp Lite, Batteries & Power Supplies, Power Management, Power Distribution Units, ADI Pro Rewards
    UPC Code:037332126658
    Country of Origin:China. Country of origin is subject to change.

    Specifications

    Product Documents and Resources

    Product Data Sheet
    User Manual
